Description

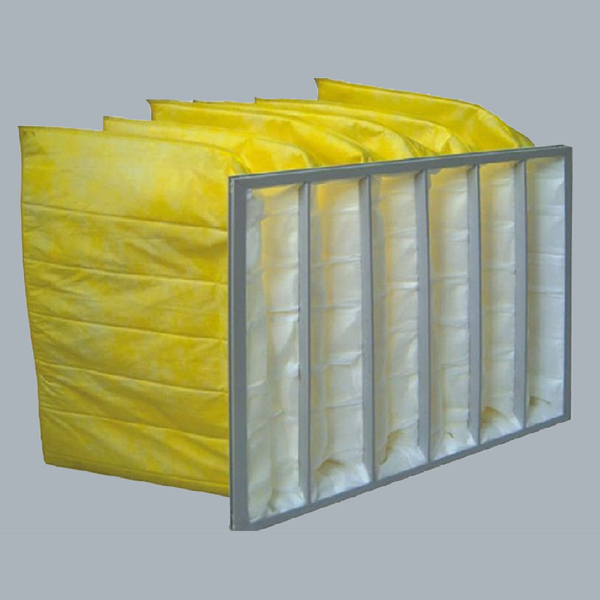

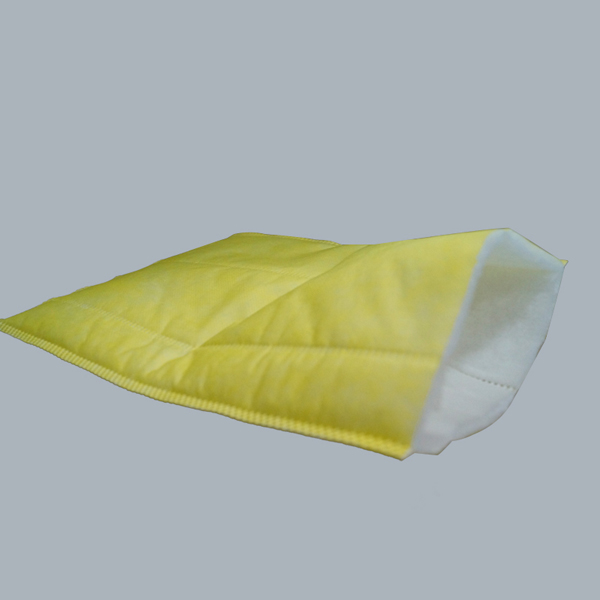

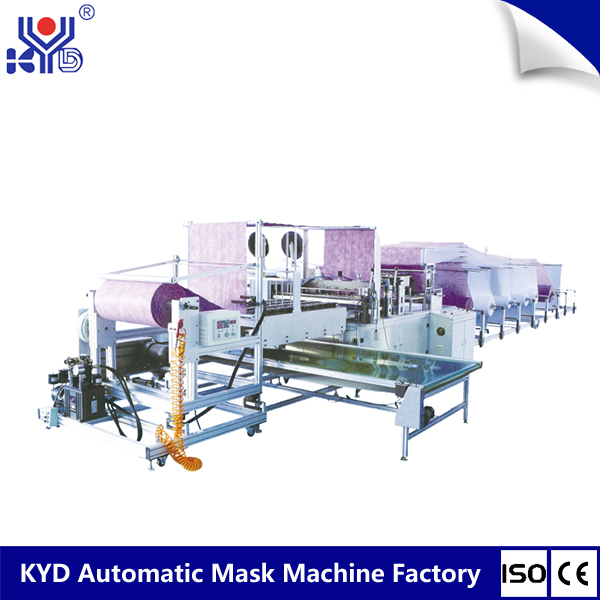

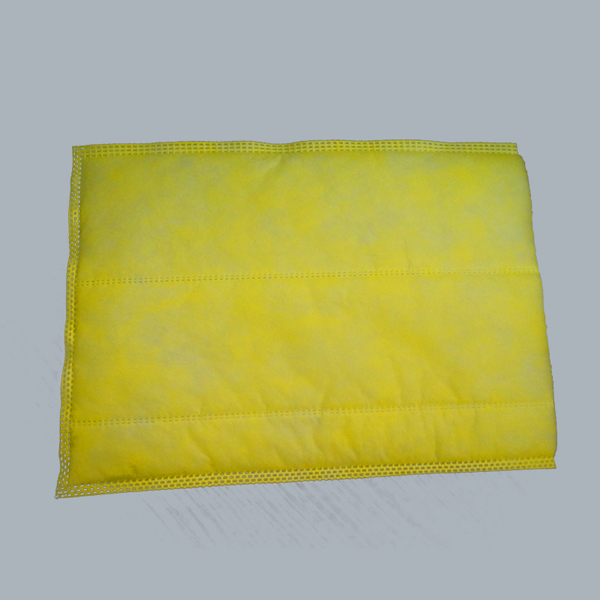

KYD-N015 pocket air filter making machine is a fully-automatic equipment designed to manufacture pocket air filters via ultrasonic melting. It can carry out the whole production process automatically, from material feeding, cutting to finished product collecting. Products manufactured by this bag filter making machine are primarily used by medium frequency filters.
Advantages
1. This pocket air filter making machine is designed with sensors to control each stage of production from fabric feeding to finished product transporting. If any abnormal condition occurs or it lacks materials, the machine will start automatic alarm and stop running. The specific problem will be shown on the touch screen, with no need of checking the reason of breakdown by manual effort, significantly improving efficiency.
2. We are staffed with a professional R&D team to offer high-efficiency and cost-saving solutions for customers.
3. We have especially established electronic department and CNC department. The electronic department is in charge of developing and assembling ultrasonic device, and the CNC department is equipped with a number of lathes and milling machines for precise control of product quality.
4. We pay great attention to technology innovation. We have obtained 2 invention patents and more than 10 utility models, and we have been awarded “National High-tech Enterprise” and “Advanced Manufacturing Industry” by the government in 2016.
Features
1. The whole frame of this pocket air filter making machine is made of thickened aluminum alloy, with its table top using anodizing aluminum plate, much more durable than common steel plate.
2. This bag filter making machine is equipped with domestic-leading HUADA servo motor and Taida PLC controller.
3. Emergency stop switches are designed to ensure the safety of operation staff.
4. The pocket air filter making machine uses radiator with powerful turbofan to ensure ultrasonic stability.
5. Our bag filter making machine uses two colors of air pipes to facilitate operation of operating staff.
Notes
1. This pocket air filter making machine is ideal for making and processing non-woven products.
2. Please confirm the machine dimensions before purchasing. 1-1.5m of space needs to be left beside the machine to ensure safe operation. Keep the working space dry and ventilated.
3. Operation and safety training is required before using the machine.
4. The bag filter making machine usually enjoys service time of 10 years if properly maintained.
Technical Parameter
Machine Size
|
12000 × 5300 × 1800mm
|
Pressure
|
6kg/cm2
|
Capacity
|
5 - 10pcs/min
|
Material of Machine
|
Aluminum alloy
|
Machine Weight
|
2500kg
|
Control Mode
|
PLC
|
Voltage
|
220V
|
Detection Mode
|
Photoelectric detection
|
Power
|
8.8kW
|
Remark
|
The size of middle layer is fixed
|
